Aznalcollar dambreak (1998, Seville, Spain)

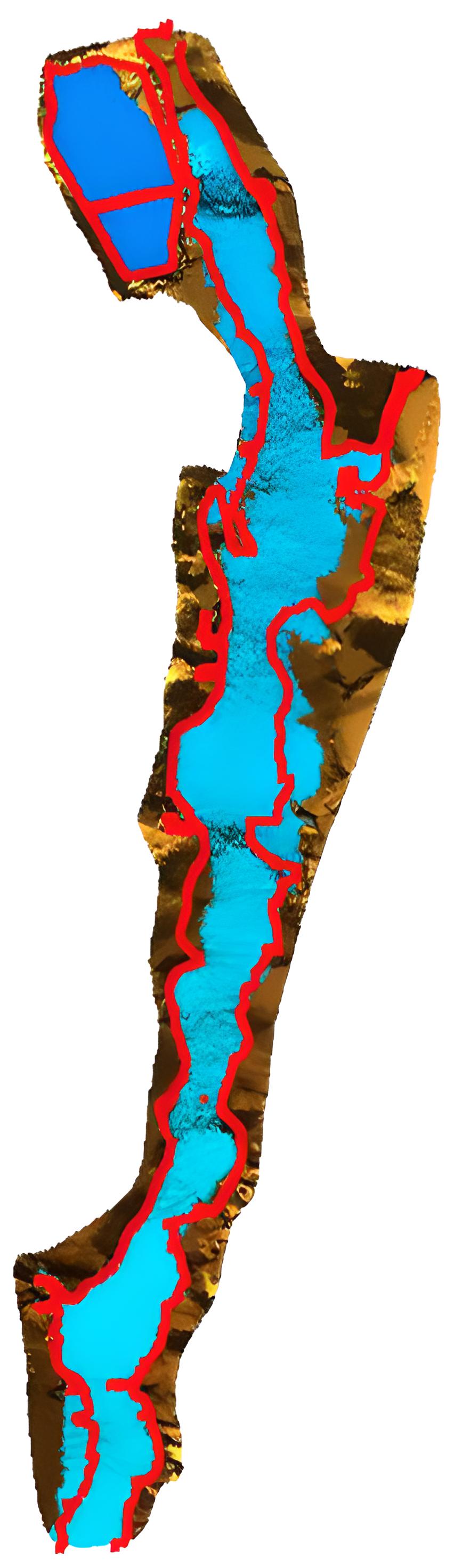

The figure below shows the simulated inundated area depicted in water texture and it is compared with the actual extentof the toxic flood, marked in red. The areas where the simulated flow moves further than the observed flooding corresponds to areas protected with vegetation not taken into account in the digital model.



Clic to see full size
